80 kg load capacity with two hinges

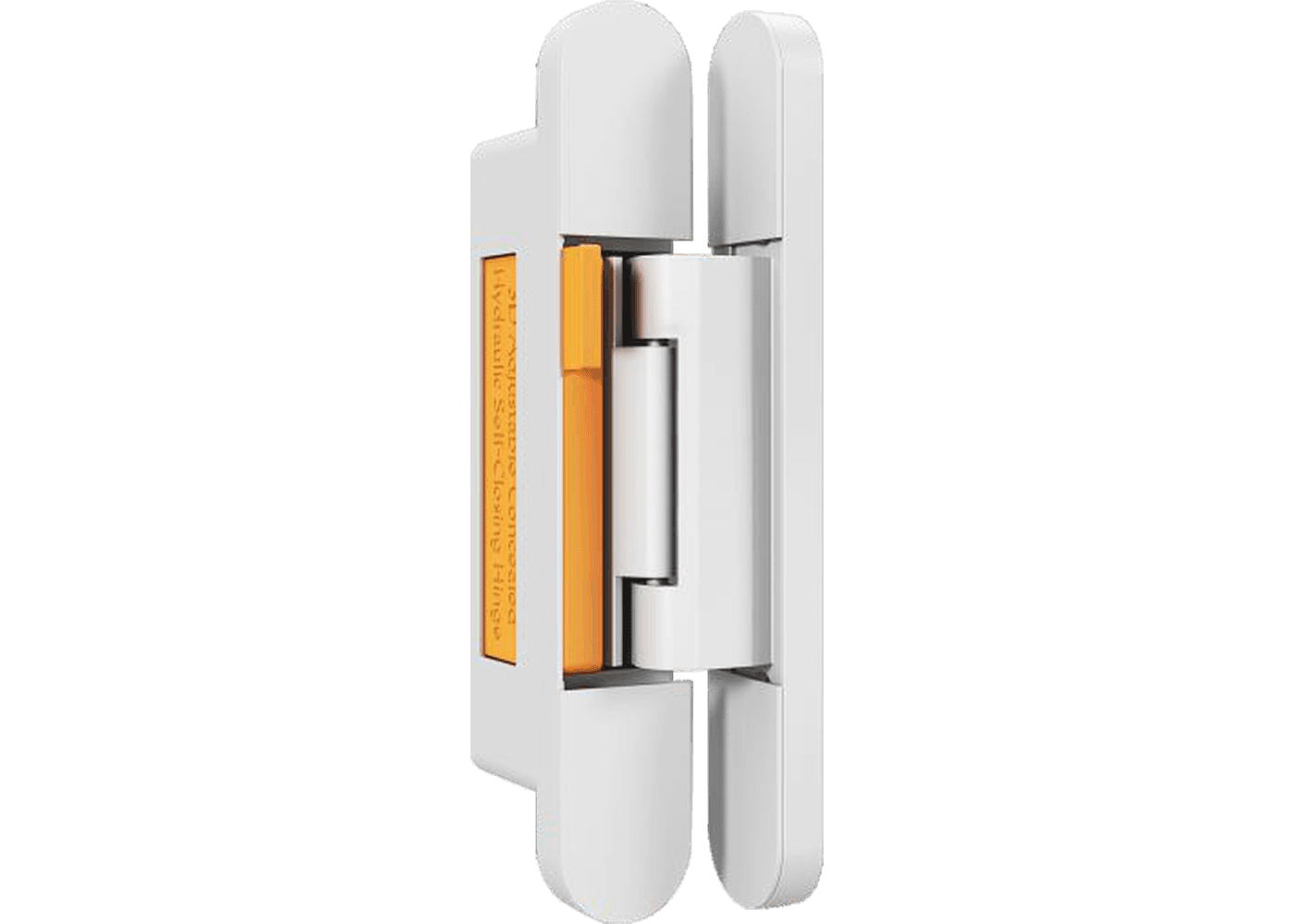

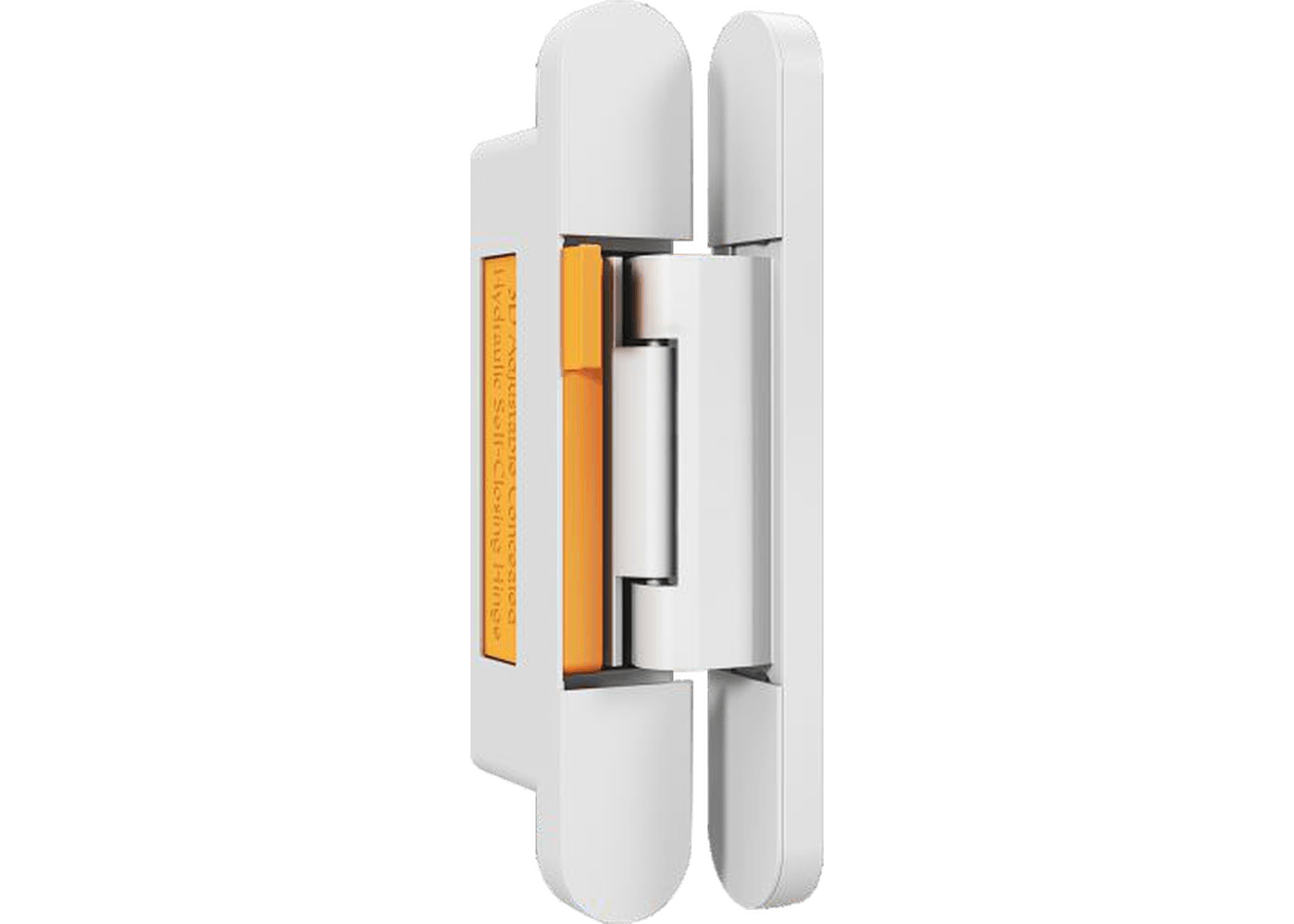

3D Adjustable Concealed Hydraulic Hinge
A concealed hinge integrating load support, hydraulic damping and three-dimensional adjustment for timber and aluminium doors requiring narrow frames and a clean elevation.
Product overview
Details at a glance
- Material
- —
- Available finishes
- HW / MAS / DHC / HBN
- Product type
- 3D Adjustable Concealed Hinges
- Material
- Zinc alloy
- Load capacity
- 80 kg / 3 hinges
- Door thickness
- 38–60 mm
- Door size
- Width ≤ 900 mm; height ≤ 2100 mm
- Application
- Timber, steel and aluminium hinged or folding doors; non-handed
- Dimensions
- 175 × 28 mm; 10 mm recess; door leaf side 130 × 33 mm; 43 mm depth
ZE-H108D-HW
Only 21 mm thick on the frame side for ultra-slim frames
Decorative covers conceal all screw holes
Suitable for timber and aluminium doors
Independent three-dimensional adjustment

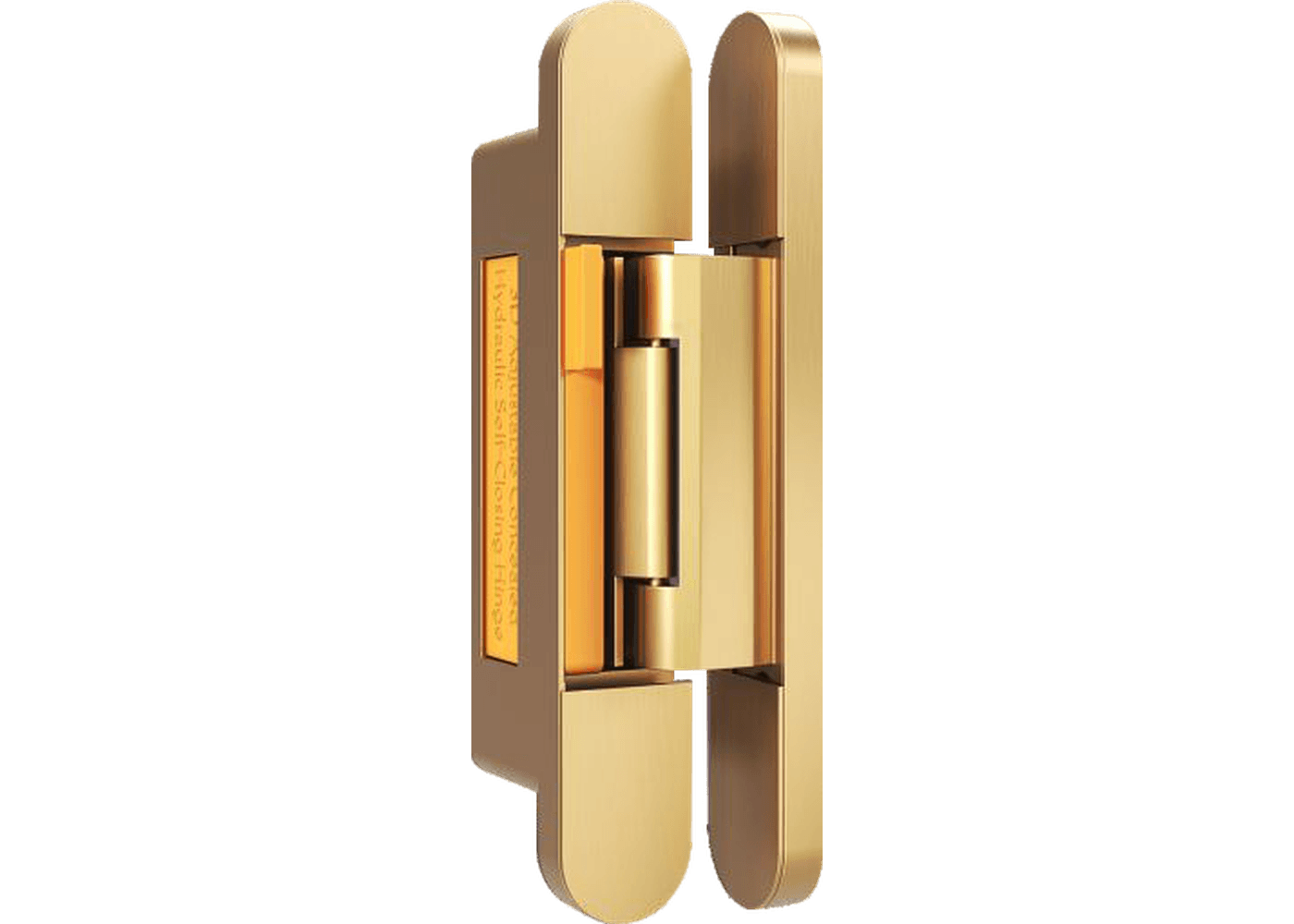

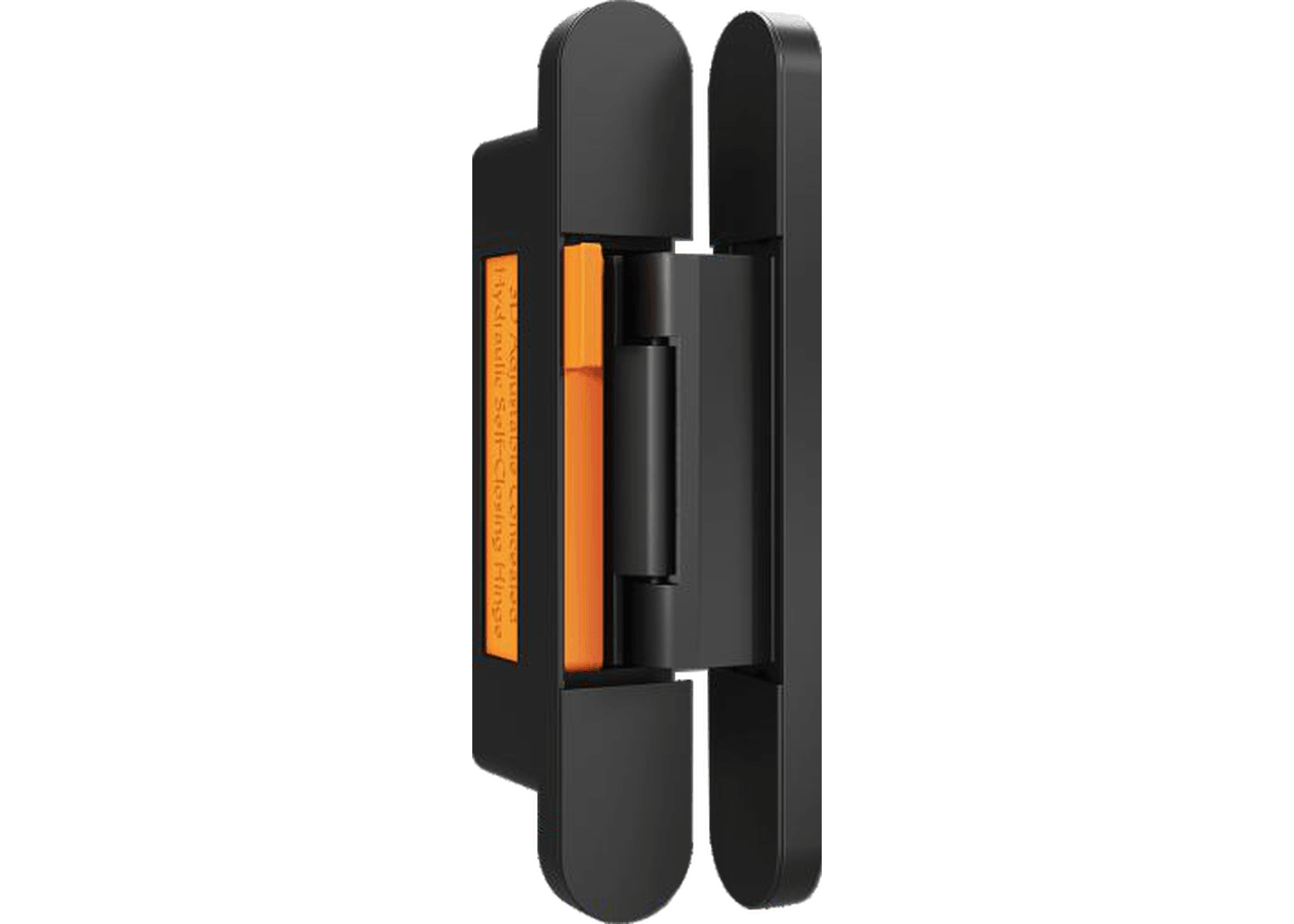

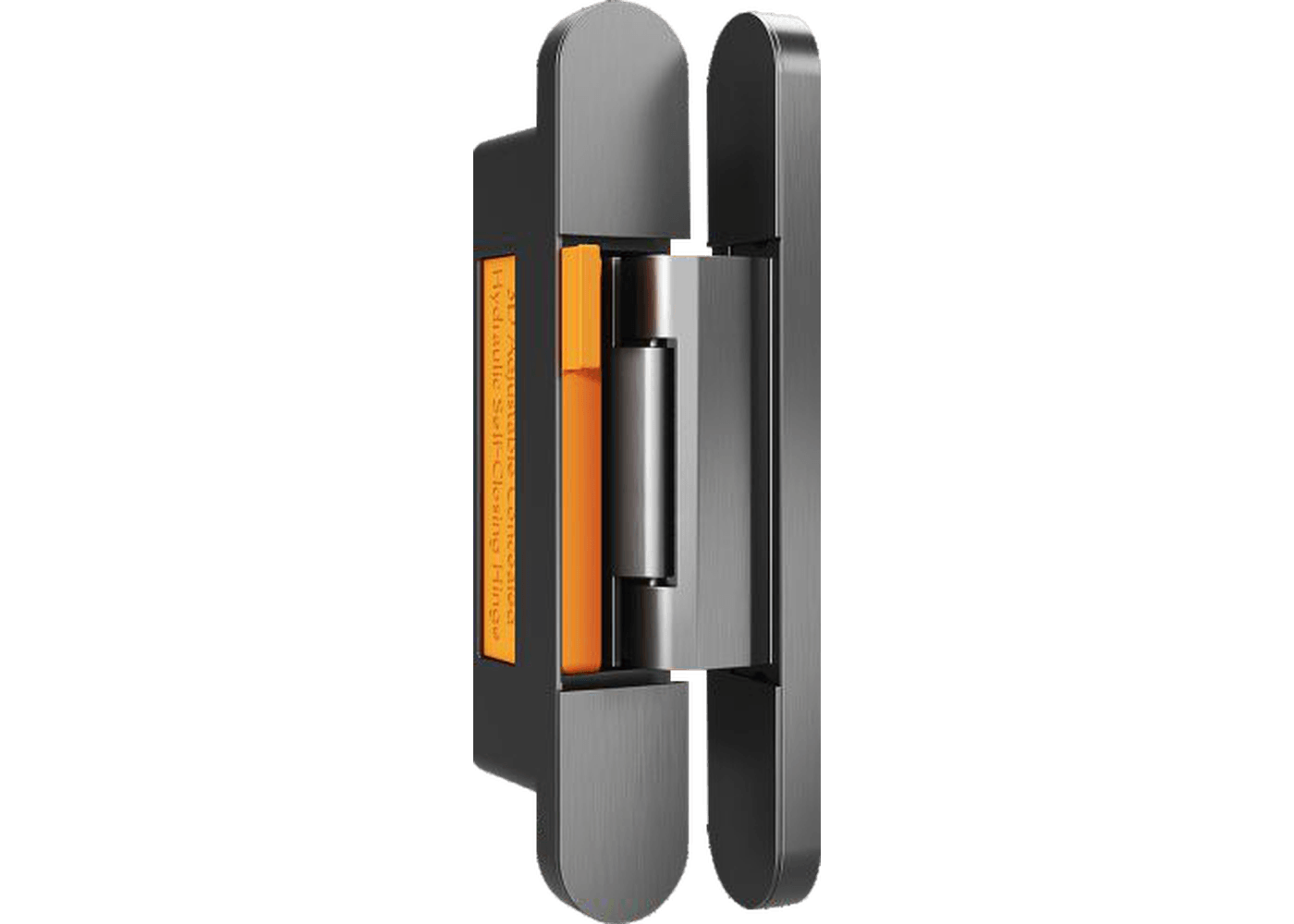

Available in multiple finishes
